One of the costliest mistakes in Louisville construction is assuming bedrock sits at a uniform depth. The city sits on a paleokarst landscape where limestone pinnacles and deep clay-filled cutters alternate within a few hundred feet. A conventional boring program alone rarely captures this geometry. Seismic tomography fills the gap. We run high-resolution refraction and reflection lines that image the soil-rock interface continuously, revealing the hidden topography that governs excavation cost, foundation selection, and groundwater control. For projects near the Ohio River floodplain or along the Beargrass Creek corridor, combining a CPT investigation with a tomographic profile delivers a data set that satisfies IBC Chapter 16 structural requirements while reducing the number of borings needed by up to 30 percent.

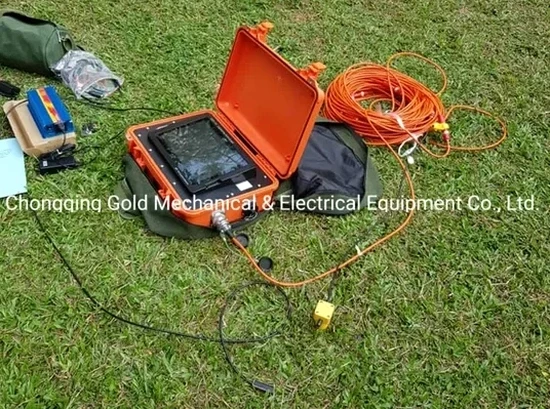

Tomographic imaging reveals the true bedrock surface where borings alone see only isolated points, a critical advantage in Louisville's karst terrain.
Our approach and scope
Local geotechnical context
ASCE 7-22 Section 11.4.3 requires a site-specific shear-wave velocity profile when Site Class F conditions are suspected, and Louisville's karst geology triggers that requirement more often than many engineers anticipate. A site classified by default as Site Class D using conservative assumptions can carry a seismic design penalty that adds tens of thousands in structural steel or concrete. Seismic tomography provides the measured Vs data to justify a more favorable site class, directly reducing the seismic base shear used in design. More critically, undetected dissolution features such as soil-filled cutters or incipient sinkholes create differential settlement risks that no amount of structural overdesign can fix. The tomogram's continuous cross-section catches these anomalies before shovels hit the ground, giving the geotechnical engineer time to adjust foundation type or plan targeted grouting.
Applicable standards
ASCE 7-22 Minimum Design Loads and Associated Criteria for Buildings and Other Structures, IBC 2021 Chapter 16 Structural Design and Chapter 18 Soils and Foundations, ASTM D5777 Standard Guide for Using the Seismic Refraction Method, ASTM D7128 Standard Guide for Using the Seismic Reflection Method
Complementary services
Shallow Refraction Tomography
Designed for sites where bedrock lies within 30 to 50 feet of the surface and the primary objective is mapping rippability, top-of-rock contour, and lateral variations in overburden stiffness. We deploy 24 to 48 geophones with hammer and weight-drop sources, delivering a velocity model with 2.5-foot vertical resolution in the upper 20 feet.
Deep Reflection Profiling
Targeted at depths of 50 to 150 feet where refraction methods lose resolution. This survey images the full soil column above bedrock, identifies buried paleovalleys common beneath Louisville's glacial outwash terraces, and provides the Vs30 profile needed for site classification when borings cannot reach competent rock.
Typical parameters
Common questions
How much does a seismic tomography survey cost in Louisville?
A typical refraction or reflection survey in the Louisville area runs between US$2.850 and US$5.350, depending on line length, number of geophone spreads, and source type. Short lines under 230 feet with hammer source fall at the lower end. Longer profiles requiring a weight-drop source, multiple spreads, and S-wave acquisition approach the upper range. Every quote includes data processing, tomographic inversion, and a signed report with velocity cross-sections.
What is the difference between seismic refraction and reflection for Louisville geology?
Refraction maps a velocity-increasing subsurface and works well where rock is shallower than about 50 feet, which covers much of eastern Louisville. Reflection images velocity contrasts at any depth and is the better tool when a low-velocity layer such as soft clay sits above rock, a common scenario in the Ohio River alluvium. We often run both on the same line to capture shallow and deep structure simultaneously.
Can seismic tomography detect sinkholes or karst voids?
Yes, with the right acquisition parameters. Air-filled voids produce a strong velocity contrast and appear as low-velocity anomalies on the refraction tomogram. Soil-filled cutters and clay seams are more subtle but still detectable as velocity lows when geophone spacing is tight enough. For active karst investigation we combine tomography with electrical resistivity to cross-validate anomalies before recommending a drilling target.
How does the survey help with IBC site classification?
IBC Table 1613.2.3 defines site class based on the average shear-wave velocity in the upper 100 feet, or Vs30. Our S-wave refraction tomography measures Vs directly in situ, producing a continuous velocity profile rather than relying on N-value correlations from borings. This measured Vs30 value can shift a site from Site Class D to C, reducing the design spectral acceleration and saving structural cost.
